EV Charger
Bi-directional DC Source(power conversion system between grid transformer and dc distribution facility) it will save electricity innovatively with safety for Plant DC Distribution. SPECIFICATION: Modular bi-directional cabinet – 264KW, 330KW, 440KW, 594KW, 660KW, 792KW, 924KW to 5 Mega
Reviews
How to use 924KW in AI DC distribution?
October 24, 2024
please give us user manual
Specifications

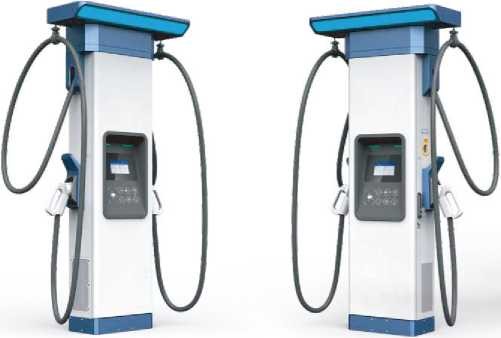

Separated EV Charger bank of electric vehicle fast charging system compliant with combined charging system (CCS). Charging system standards: UL2022:2009 R2.18, UL2231-2 R08.16, UL2231-1 R08.16
Specification: 600KW, 480KW, 360KW, 270KW, 160KW available
| 600K2 | |||||||
| AC input | AC input Frequency/ Voltage | 45-65Hz/ 3-phases+(N)+PE / 260Vac-530Vac | |||||
| AC max input current | CE: 2 * 538A / UL: 2 * 426A | ||||||
| Power factor | >0.99 | ||||||
| Total harmonic current | <5% (Rated input) | ||||||
| DC output | Output DC voltage range | 150V-1000V | |||||
| Max DC output power | 600kW@300V~1000V | ||||||
| Max DC output current | 2000A@300V, 1200A@500V, 600A@1000V | ||||||
| Max system efficiency | >95.0% (Rated input and output) | ||||||
| Output channel | Max 8 channels Charging bus outputs as the input of the charging dispensers | ||||||
| Dispenser support | Max 4 dual-gun dispensers or 8 single-gun dispensers | ||||||
| HMI | RGB LED , E-STOP | ||||||
| Mechanical | Dimension: W * H * D mm = 2000 * 2200 * 850 mm Weight: 800kg + 20 * 30kg = 1400 kg (Full power modules and full liquid) | ||||||
| Protection Class | IP54 for the electric distribution part, IP65 for the power convert part | ||||||
| Noise | <60dB (Rated input and output), Max noise <65dB | ||||||
| Power Switch | Intelligent power switch between the power module groups, can switch to each output channels to maximize the power efficiency | ||||||
| Power Module | Max 20 module slots | LRG1K0100G 30kW/1000V liquid cooled power module | ||||||
| DC input | DC input Voltage range | 150V-1000V | |||||
| DC input Channel | 1 channel DC bus | 2 channels DC bus | 2 channels DC bus | 2 channels DC bus | |||
| DC output | Output charging cable | 1 | 2 | 2 | 2 | ||
| Output DC voltage range | 150V-1000V | ||||||
| Max DC output current | 500A 2 * 200A(Opt 250A) 2 *300A 500A+200A(Opt 500A) | ||||||
| HMI | Tempered glass protective 7″ capacitive Touch Screen LCD, RGB panel LED , E-STOP , RFID , Credit card reader (opt) | ||||||
| Metering | DC energy meter, GB/T 50063-2008 and DL/T 5137-2008 standard | ||||||
| Monitor | OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support | ||||||
| Optional Function | Optional Credit Card Reader installation, Optional charger cable retractor installation, | ||||||
| Charging and Billing Modes | Auto full charge, Charge time, Amount, Charge energy, Charge end SOC | ||||||
| Charging Protection | Overcurrent/ Short circuit/ Overvoltage/ Undervoltage/ RCD / Insulation/ Overtemperature protection | ||||||
| Reverse polarity protection | |||||||
| Mechanical | Dimension:W*H*D mm | 600X1800*260/200Kg/IP55/1K10 | |||||
| Charging connector configuration | CCS | 2*CCS+NACS | |||||
| Charging connector capacity | CCS: 200A(opt 250/300/500A) NACS: 200A(opt 400A) | ||||||
| Noise | 60dB | ||||||
| Standard | |||
| Charging standard | GBT 27930-2011 and 27930-2015, CHAdeMO V1.2A/2.0, DIN70121 and ISO15118 | ||
| EMC/Safety | UL2202, CE, EN61000-6-3/EN61000-6-1 Class A ; EN 61851-1/EN 61851-23/EN 61851-24 | ||
| Working environment | |||
| Ambient temperature | -20 ~ +70°C . full power output below 50°C, Power derating 5%/ °C above 50°C | ||
| Storage temperature | -40 〜 +75°C | ||
| Working humidity | 0-95% | ||
| Working altitude | 2000 m | ||
