BESS Charger

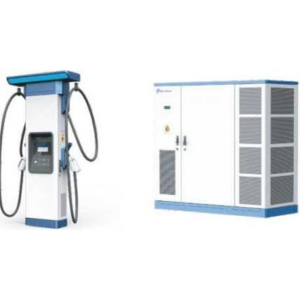

Description as ESS EV Charger+ ESS + PV: a new generation of electric vehicle fast-charging system with energy storage function, is able to fast charge all electric vehicles compliant with combined charging system (CCS) charging system standards.
Energy Storage Charger
Reviews
How to use 924KW in AI DC distribution?
October 24, 2024
please give us user manual
Specifications

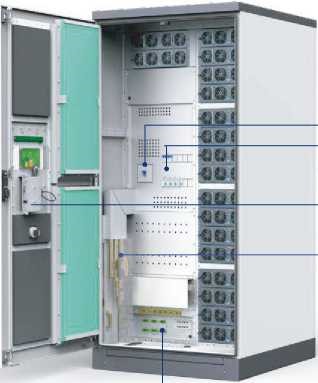

SPECIFICATION: 480KW split cabinet
- IP54 for severe environment using, -25℃~+50℃ ambient temperature full power charging.

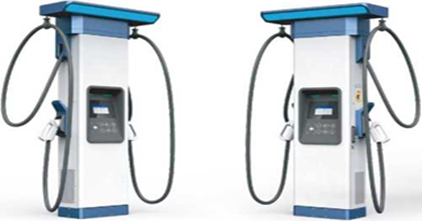

- Configure two dispensers, one is 180kW (90kW+90kW), one is 180kW (90kW+90kW), output voltage from 150V to 1000V.
- Applicable Standard: UL2202:2009R2.18

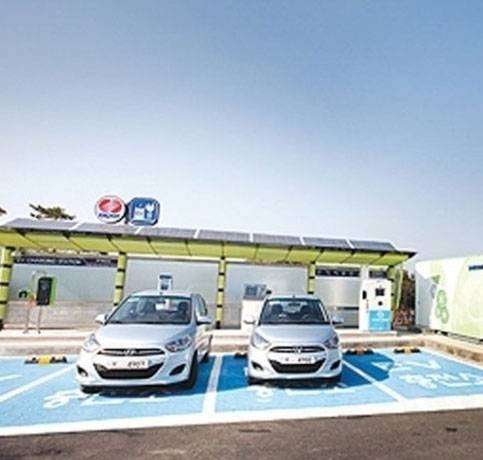

- EV CHARGER BANK + ESS + PV
- PV, DC-DC, AC-DC 540KW
| Technical Data | Description | |
| Nominal Input | Phases/Lines | 3 phases + neutral + PE |
| Voltage | 480Vac (+/-10%) | |
| Frequency | 50 Hz/ 60Hz | |
| Rate Current | 304A+76A | |
| Power factor | ≥0.99 | |
| System Efficiency | ≥ 94.5% (Full load) | |
| PV Input | Input Voltage | 300~825Vdc |
| Input Current | 2 X 50A(Max) , ”2” Number of channels | |
| Nominal Power | 2 X 30kW , ”2” Number of channels | |
| Battery Input | Input or Output Voltage | 300~825Vdc |
| Input or Output Current | 280A(Max) | |
| DC Output | EV Charging Power | 360kW |
| Voltage range | 150~1000Vdc | |
| Current | 4 X 500A(Max) , ”4” Number of channels | |
| Dispenser support | 2 dispensers / 4 charging connectors connection | |
| Auxiliary power Output | Voltage | 480Vac |
| Current | 8A | |
| Cabinet | Dimensions(W*D*H) | 1000mm X 1150mm X 2200mm |
| Weight | 550 kg (excluding power module, power module is 22.5kg .) | |
| Protection Degree | NEMA 3R / Rainproof /IP54 | |
| HMI and Command Unit | Local interface | TFT Color touch display 7” |
| Communication | Router 3G/4G (GSM, CDMA or LTE) | |
| Protocol | OCPP1.6 specification | |
| Environment conditions | Operating temperature 1 | -25°C~+50°C |
| Transportation/storage temperature | -40°C~+70°C | |
| humidity | 5%RH~95%RH | |
| Place of installation | Indoor / Outdoor 2 | |
| Altitude | 2000m | |
| Sound Noise | ≤75dB (nominal input/output power, the environment temperature is 25°C.) | |
| Atmospheric pressure | 80KPa~110KPa | |
| AC Input Overvoltage category | III | |
| PV Input Overvoltage category | III | |
| DC Input or Output Overvoltage category | I | |
| Protection class | Class I | |
